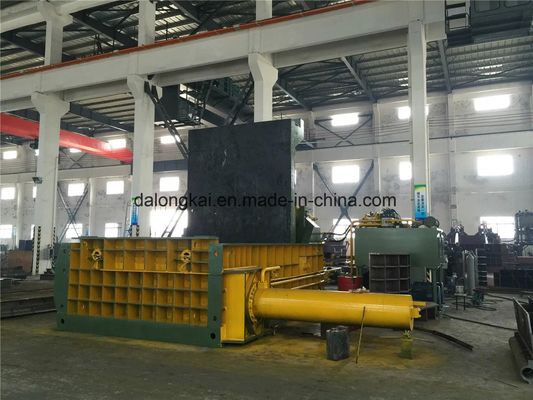

Y81K-315 Scrap Baler Machine with 4000x3500x1300mm Press Box and 700x700mm Bale Size for Non-Ferrous Metal Recycling
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | Y81K-315 | 주요 Cyl.Force | 315 톤 |
|---|---|---|---|
| 박스 크기를 누릅니다 | 4000*3500*1300 (mm) | 베일 크기 | 700*700 (mm) |
| 베일 무게 | 800 ~ 1300 (kg) | 모터 파워 | 135 (KW) |
| 생산 능력 | 5 세트/월 | 공칭 힘 | 125tons ~ 1200tons |
| 구동 유형 | 유압 | 전력 범위 | 15kW ~ 270kW |
| 전압 | 21.5MPA | 자동 등급 | 반자동 |
| 압출력 | 63 톤에서 400 톤 | 생산력 | 4TONS/40TONS/SHIFT로 이동 |
| 배출 유형 | 뒤집기, 밀고, 전달, 수동 리프팅 | ||
| 강조하다 | Y81K-315 Scrap Baler Machine,4000x3500x1300mm Hydraulic Metal Baler,700x700mm Scrap Metal Compress Machine |
||
제품 설명
Y81K-315 Scrap Non-Ferrous Metal Compress Machine
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive materials into compact bales of different shapes (square, cylindrical, octagonal). This process significantly reduces transportation costs and improves logistics efficiency.
Key Applications
- Steel plants and metal recycling facilities
- Non-ferrous and ferrous metal refining industries
- Metal processing and reclamation operations
Technical Features
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas with unreliable power supply
- Extrusion force from 63 to 400 tons (10 available grades)
- Productivity range: 4-40 tons per shift
- Customizable compression chamber and bale dimensions
Product Specifications
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal compression |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Overseas engineer support available |
Technical Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
