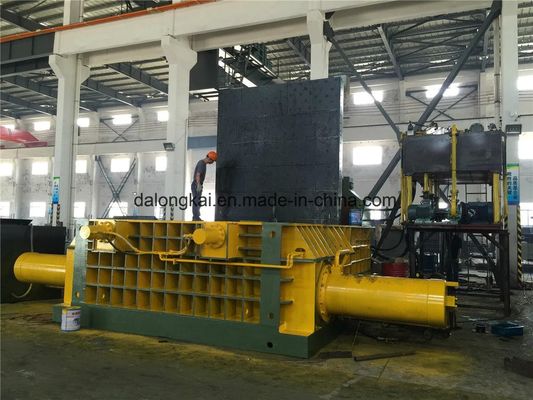

Y81K-315 Hydraulic Scrap Baler Machine with 315 Ton Force 3500x3000x1300mm Press Box and Customizable Bale Size for High Productivity
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | Y81K-315 | 주요 Cyl.Force | 315 톤 |
|---|---|---|---|
| 박스 크기를 누릅니다 | 3500*3000*1300 (mm) | 베일 크기 | 600*600 (mm) |
| 베일 무게 | 600 ~ 1000 (kg) | 모터 파워 | 90(kw) |
| 공칭 힘 | 125tons ~ 1200tons | 구동 유형 | 유압 |
| 전력 범위 | 15kW ~ 270kW | 전압 | 21.5MPA |
| 자동 등급 | 반자동 | 생산 능력 | 5 세트/월 |
| 압출력 | 63 톤에서 400 톤 | 생산력 | 4TONS/40TONS/SHIFT로 이동 |
| 배출 유형 | 뒤집기, 밀고, 전달, 수동 리프팅 | ||
| 강조하다 | 315 Ton Hydraulic Scrap Baler,3500x3000x1300mm Metal Baler Machine,Customizable Bale Size Scrap Copper Baler |
||
제품 설명
Y81K-315 Hydraulic Scrap Copper Baler Machine
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These bales can be formed into square columns, cylinders, octagons, and other shapes to optimize transportation, reduce costs, and improve logistics efficiency.
Ideal for steel plants, recycling facilities, and metal processing industries, this baler offers hydraulic drive systems with optional manual or PLC automatic controls. Multiple discharge methods are available including turning over, pushing out, forwarding out, and manual lifting.
Key advantages include no need for fixed foot screws and the option to operate with a diesel engine when electrical power is unavailable. With extrusion forces ranging from 63 to 400 tons across 10 models, productivity varies from 4 to 40 tons per shift. Both compression chamber dimensions and bale specifications can be customized to meet specific requirements.
Product Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Overseas engineer support available |
Technical Specifications
| Model | Main Cyl.Force (ton) | Press Box Size (mm) | Bale Size (mm) | Bale Weight (kg) | Motor (KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
