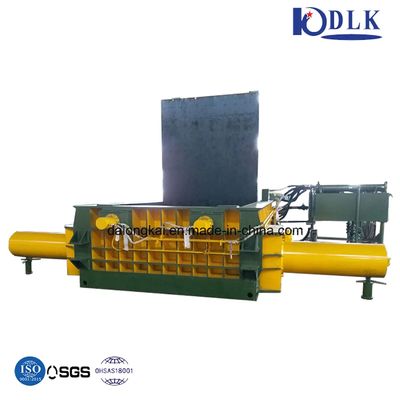

Y81K-315 Hydraulic Scrap Metal Compactor with 600x600mm Bale Size 3000x2500x1200mm Press Box and 400-700kg Bale Weight
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | Y81K-315 | 유형 | 지스러기 금속 베일러 |
|---|---|---|---|
| 오토메이션 | 반자동 | 주요 Cyl.Force | 315 톤 |
| 박스 크기를 누릅니다 | 3000*2500*1200 (mm) | 베일 크기 | 600*600 (mm) |
| 베일 무게 | 400 ~ 700 (kg) | 모터 파워 | 90(kw) |
| 공칭 힘 | 125tons ~ 1200tons | 구동 유형 | 유압 |
| 전압 | 21.5MPA | 전력 범위 | 15kW ~ 270kW |
| 생산 능력 | 5 세트/월 | 압축 챔버 | 사용자 정의 가능 |
| 배출 유형 | 뒤집기, 밀고, 전달, 수동 리프팅 | ||
| 강조하다 | 600x600mm Bale Size Hydraulic Scrap Metal Compactor,3000x2500x1200mm Press Box Scrap Baler Machine,400-700kg Bale Weight Hydraulic Press Machine |
||
제품 설명
Y81K-315 Hydraulic Scrap Metal Compactor Machine
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These uniform shapes (square, cylindrical, octagonal) optimize transportation, reduce costs, and improve handling efficiency.
Key Features
- Ideal for steel plants, recycling facilities, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No foundation bolts required for installation
- Diesel engine compatible for locations without power supply
- Customizable compression chamber and bale dimensions
- Extrusion force range: 63 to 400 tons (10 available grades)
- Productivity range: 4 to 40 tons per shift
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa (Customizable) |
| Color | Customizable |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Technical Parameters
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
Product Images
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free for manufacturer defects. For user-caused issues, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin city, Jiangsu province, China (214429), near Shanghai Pudong Airport. We provide airport pickup and can assist with hotel arrangements.
Q3: Are you a manufacturer or trading company?
We are a direct manufacturer with 20 years of experience, exporting 50-60% of our production.
Q4: How can I trust your company?
- Holding national patents and CE, ISO certifications
- Factory located near Shanghai Pudong Airport for easy inspection
- Specialized in hydraulic balers and shears for two decades
Q5: Is your price competitive?
We offer the best factory prices for our superior quality machines and comprehensive service package.
