Y81F-160 Hydraulic Press Machine for Scrap Aluminum with 1600*1000*800mm Press Box and 300*300mm Bale Size
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | Y81F-160 | 유형 | 지스러기 금속 베일러 |
|---|---|---|---|
| 오토메이션 | 반자동 | 주요 Cyl.Force | 160 톤 |
| 박스 크기를 누릅니다 | 1600*1000*800 (mm) | 베일 크기 | 400*400 (mm) |
| 베일 무게 | 100 ~ 150 (kg) | 모터 | 22(kw) |
| 전원 유형 | 유압 | 공칭 힘 | 125tons ~ 1200tons |
| 힘 | 15kW ~ 270kW | 전압 | 21.5MPA |
| 압출력 | 63 톤에서 400 톤 | 생산력 | 4TONS/40TONS/SHIFT로 이동 |
| 구동 유형 | 유압 | ||
| 강조하다 | 1600*1000*800mm Hydraulic Press Machine,300*300mm Scrap Baler Machine,100~150Kg Metal Baler |
||
제품 설명

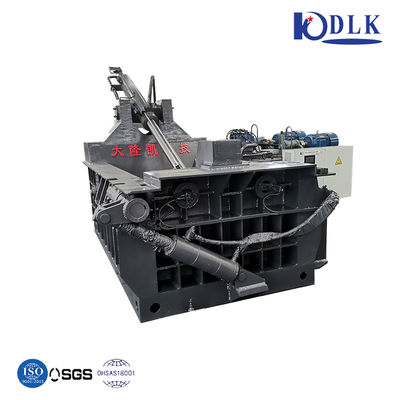

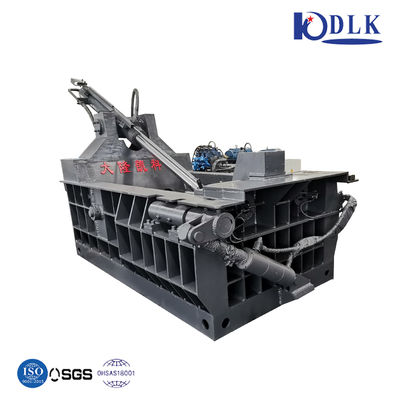

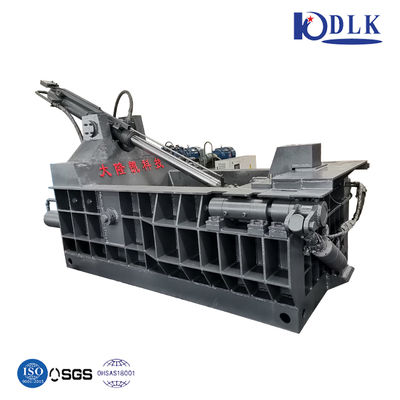

Y81f-160 Hydraulic Press Machine for Scrap Aluminum
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive materials into compact bales. These bales can be formed into square columns, cylinders, octagons, and other shapes to optimize transportation, reduce costs, and improve logistics efficiency.
Key Features
- Ideal for steel plants, recycling facilities, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No foundation bolts required for installation
- Diesel engine compatible for locations without power supply
- Extrusion force range: 63 to 400 tons (10 available grades)
- Productivity range: 4 to 40 tons per shift
- Fully customizable compression chamber and bale dimensions
Product Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Technical Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set /month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |

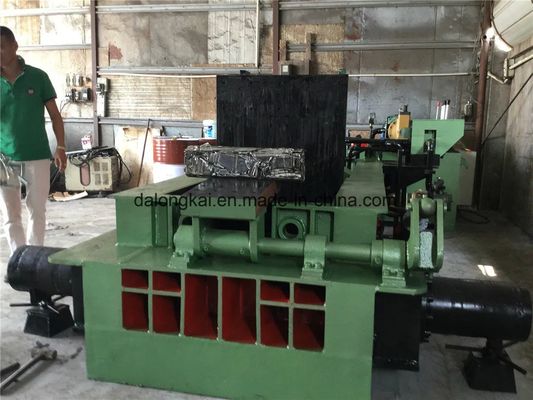

Product Images
Frequently Asked Questions
Q1: How can I get the after-service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by us. For user-caused issues, spare parts are available at cost. Contact us directly for any concerns.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, China. We're conveniently located near Shanghai Pudong Airport and can arrange airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
With 20 years of professional experience, we offer:
- Third-party assessed national patents and CE, ISO certifications
- Open factory inspections anytime (near Shanghai Pudong airport)
- Specialized expertise in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
We guarantee high-quality machines at the most competitive factory prices, backed by superior products and service.
