Y81F-160 Hydraulic Compactor Machine with 22 Kw Motor and 400x400mm Bale Size for Scrap Copper Recycling
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | Y81F-160 | 주요 Cyl.Force | 160 톤 |
|---|---|---|---|
| 박스 크기를 누릅니다 | 1600*1000*800 (mm) | 베일 크기 | 400*400 (mm) |
| 베일 무게 | 100 ~ 150 (kg) | 모터 파워 | 22(kw) |
| 공칭 힘 | 125tons ~ 1200tons | 구동 유형 | 유압 |
| 전압 | 21.5Mpa, 맞춤형 | 자동 등급 | 반자동 |
| 생산 능력 | 5 세트/월 | 압출력 | 63 톤에서 400 톤 |
| 생산력 | 4TONS/40TONS/SHIFT로 이동 | 배출 유형 | 뒤집기, 밀고, 전달, 수동 리프팅 |
| 전원 옵션 | 디젤 엔진 사용 가능 | ||
| 강조하다 | Y81F-160 Hydraulic Compactor Machine,22 Kw Motor Scrap Baler Machine,400x400mm Bale Size Hydraulic Metal Baler |
||
제품 설명
Y81f-160 Hydraulic Compactor Machine for Scrap Copper
Product Overview
The Y81 series metal hydraulic baler efficiently compacts various metal scrap materials including steel, copper, aluminum, stainless steel, and automotive scrap into dense, transport-friendly bales. This machine reduces transportation costs while increasing loading efficiency.
Key Features
- Processes multiple metal types into square, cylindrical, or octagonal bales
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No foundation bolts required for installation
- Diesel engine compatible for areas with unreliable power supply
- Customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa (Customizable) |
| Color | Customizable |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Model Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |

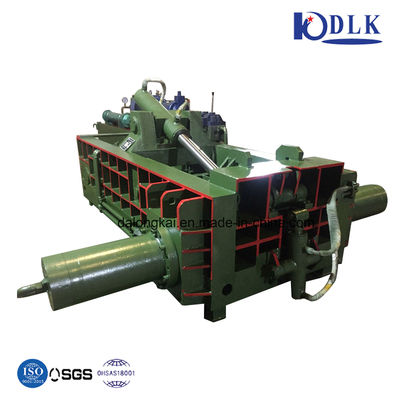

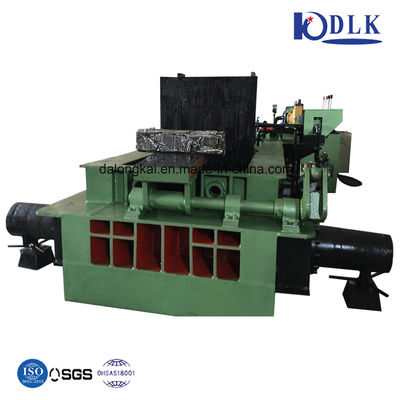

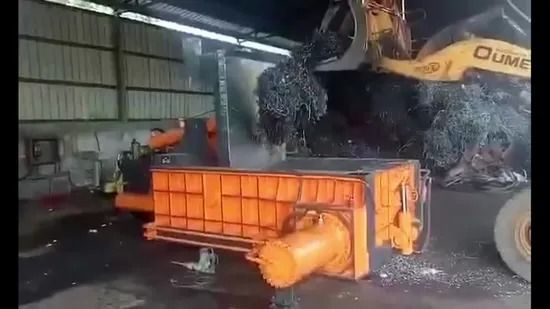

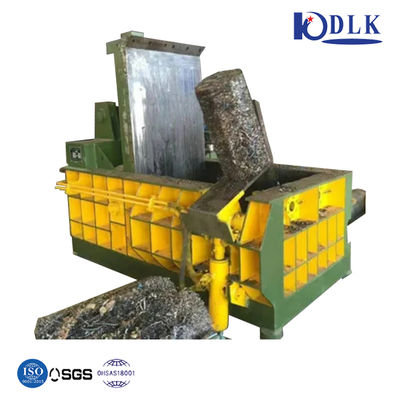

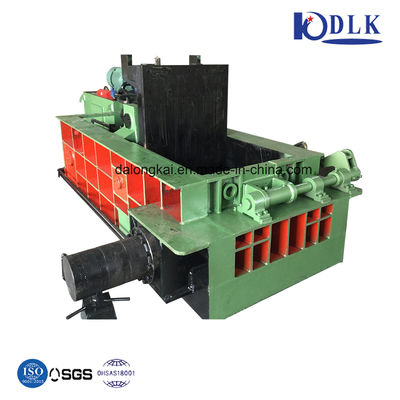

Product Images
Factory & Certification
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by manufacturing defects. For user-caused issues, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin city, Jiangsu province (214429), China, near Shanghai Pudong Airport. We provide airport pickup and can assist with hotel arrangements.
Q3: Are you a factory or trading company?
We are a manufacturer with 20 years of experience, exporting 50-60% of our production.
Q4: How can I trust your company?
- Certified with national patents, CE, and ISO standards
- Factory inspections welcome - conveniently located near Shanghai Pudong airport
- Specialized in hydraulic balers and shears with proven expertise
Q5: Is your price competitive?
We offer the best factory prices for our high-quality machines, backed by superior service and support.
