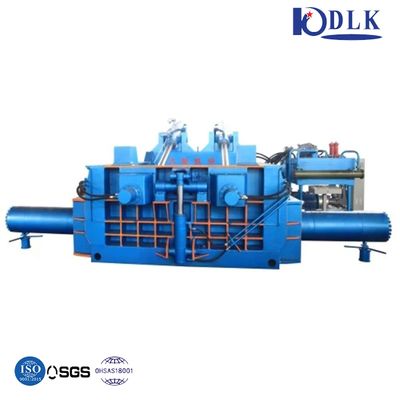

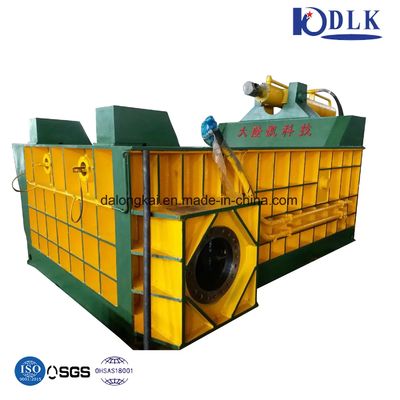

Y81F-250 Scrap Baler Machine with 2000*1400*900mm Press Box and 500*500mm Bale Size for Metal Recycling
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | Y81F-250 | 주요 Cyl.Force | 250 톤 |
|---|---|---|---|
| 박스 크기를 누릅니다 | 2000*1400*900 (mm) | 베일 크기 | 500*500(mm) |
| 베일 무게 | 200 ~ 400 (kg) | 모터 파워 | 44 (KW) |
| 제어 시스템 | 설명서 또는 PLC | 공칭 힘 | 125tons ~ 1200tons |
| 구동 유형 | 유압 | 전력 범위 | 15kW ~ 270kW |
| 전압 | 21.5MPA | 자동 등급 | 반자동 |
| 생산 능력 | 5 세트/월 | 압출력 | 63 톤에서 400 톤 |
| 생산력 | 4TONS/40TONS/SHIFT로 이동 | ||
| 강조하다 | Y81F-250 Scrap Baler Machine,2000*1400*900mm Press Box Scrap Baler,500*500mm Bale Size Hydraulic Metal Baler |
||
제품 설명
Y81f-250 Scrap Stainless Steel Baler Machine
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This process reduces transportation costs and increases efficiency by producing uniform shapes like square columns, cylinders, and octagons.
Key Features
- Hydraulic operation with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas without power supply
- Customizable compression chamber and bale sizes
- Extrusion force from 63 to 400 tons (10 available grades)
- Productivity range: 4-40 tons per shift
Applications
Ideal for steel plants, recycling facilities, processing industries, and nonferrous/ferrous metal refining operations.
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set /month |
| Delivery Time | As your requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Detailed Technical Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Manufacturer Information
Jiangsu Dalongkai Technology Co., Ltd.
Frequently Asked Questions
Q1: How can I get after-service support?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by us. For man-made problems, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Yes, we welcome visits to our factory at: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We're near Shanghai Pudong Airport and can provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
With 20 years of professional design experience, we offer suitable suggestions and competitive pricing. We hold national patents and CE, ISO certifications. Our factory is open for inspection near Shanghai Pudong airport. We specialize in hydraulic balers and shears.
Q5: Is your price competitive?
We supply only high-quality machines at the best factory prices, backed by superior products and service.
