250 Ton Hydraulic Metal Baler with 2000*1850*1000mm Press Box and 500*500mm Bale Size for Scrap Metal Recycling
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | Y81F-250 | 주요 Cyl.Force | 250 톤 |
|---|---|---|---|
| 박스 크기를 누릅니다 | 2000*1850*1000 (mm) | 베일 크기 | 500*500(mm) |
| 베일 무게 | 250 ~ 450 (kg) | 모터 파워 | 60(kw) |
| 공칭 힘 | 125tons ~ 1200tons | 구동 유형 | 유압 |
| 전력 범위 | 15kW ~ 270kW | 전압 | 21.5Mpa, 맞춤형 |
| 자동 등급 | 반자동 | 생산 능력 | 5 세트/월 |
| 압출력 | 63 톤에서 400 톤 | 생산력 | 4TONS/40TONS/SHIFT로 이동 |
| 배출 유형 | 뒤집기, 밀고, 전달, 수동 리프팅 | ||
| 강조하다 | 2000*1850*1000mm Hydraulic Metal Baler,500*500mm Scrap Baler Machine,250~450Kg Scrap Metal Baling Press Machine |
||
제품 설명
Y81f-250 Scrap Metal Baling Press Machine
Product Overview
The Y81 series hydraulic metal baler efficiently processes various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These bales can be formed into square columns, cylinders, octagonal shapes, and other configurations to optimize transportation, reduce costs, and improve logistics efficiency.
Key Features
- Ideal for steel plants, recycling facilities, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No foundation bolts required for installation
- Diesel engine option available for locations without power supply
- Extrusion force ranges from 63 to 400 tons (10 available grades)
- Production capacity from 4 to 40 tons per shift
- Customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Detail |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Detailed Technical Parameters
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |

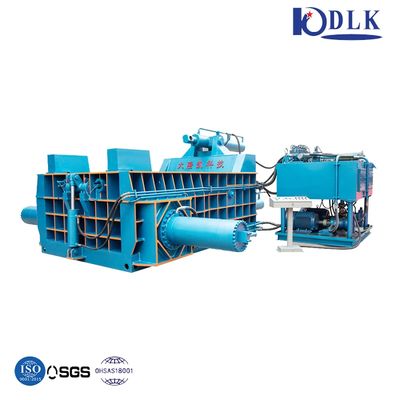

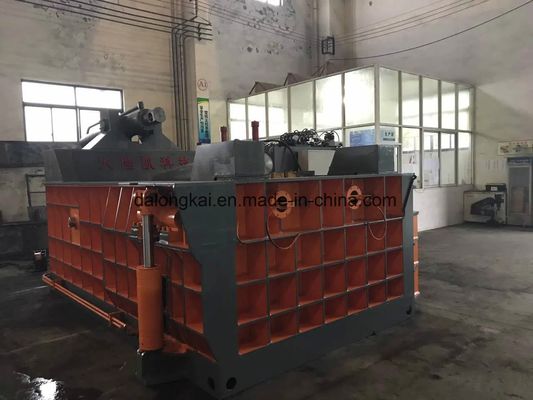

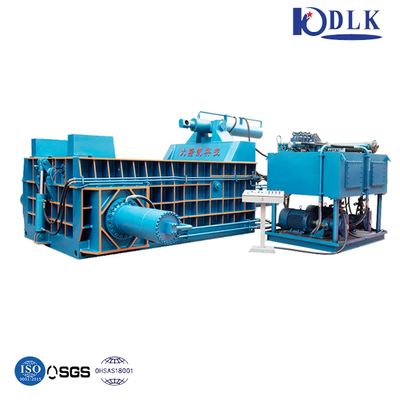

Product Images
Factory & Certification
Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free of charge for problems caused by us. For man-made problems, spare parts are available at cost. Direct phone support is always available.
Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China, near Shanghai Pudong Airport. We provide airport pickup and hotel booking services.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
How can I trust your company?
With 20 years of professional design experience, we offer expert advice and competitive pricing. Our credentials include:
- Third-party assessed with national patents and CE, ISO certifications
- Factory inspection welcome - conveniently located near Shanghai Pudong airport
- Specialized in hydraulic balers and hydraulic shears
Is your price competitive?
We guarantee high quality machinery and provide the best factory price based on superior products and comprehensive service.
