Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | Y81F-250 | 유형 | 지스러기 금속 베일러 |
|---|---|---|---|
| 오토메이션 | 반자동 | 주요 Cyl.Force | 250 톤 |
| 박스 크기를 누릅니다 | 2000*1750*1000 (mm) | 베일 크기 | 500*500(mm) |
| 베일 무게 | 250 ~ 450 (kg) | 모터 | 60(kw) |
| 전원 유형 | 유압 | 공칭 힘 | 125tons ~ 1200tons |
| 힘 | 15kW ~ 270kW | 전압 | 21.5Mpa, 맞춤형 |
| 생산 능력 | 5 세트/월 | 구동 유형 | 유압 |
| 자동 등급 | 반자동 | ||
| 강조하다 | 2000*1750*1000mm Press Box Hydraulic Scrap Baler,500*500mm Bale Size Metal Baler Machine,250~450Kg Bale Weight Scrap Metal Compactor |
||
제품 설명
Y81f-250 Hydraulic Steel Shaving Baler Compress Machine OEM
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These bales can be formed into square columns, cylinders, octagons, or other shapes to optimize transportation, reduce costs, and improve logistics efficiency.
Key Features
- Ideal for steel plants, recycling centers, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas without power supply
- Extrusion force from 63 to 400 tons (10 available grades)
- Productivity ranging from 4 to 40 tons per shift
- Fully customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa (Customizable) |
| Color | Customizable |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Detail |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Overseas engineer support available |
Model Specifications
| Model | Main Cyl.Force (ton) | Press Box Size (mm) | Bale Size (mm) | Bale Weight (kg) | Motor (KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |

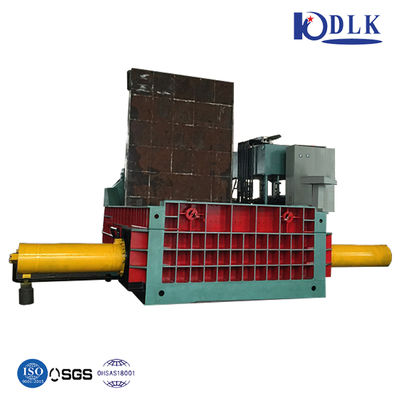

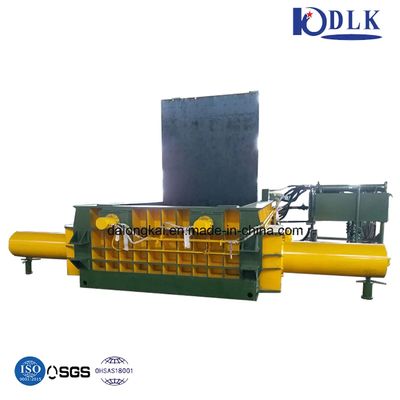

Product Images
