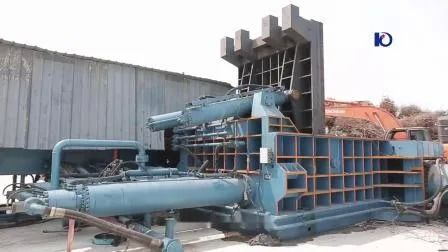

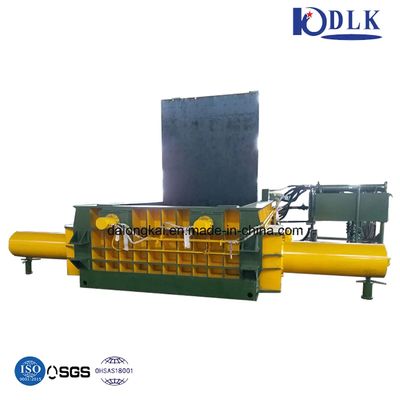

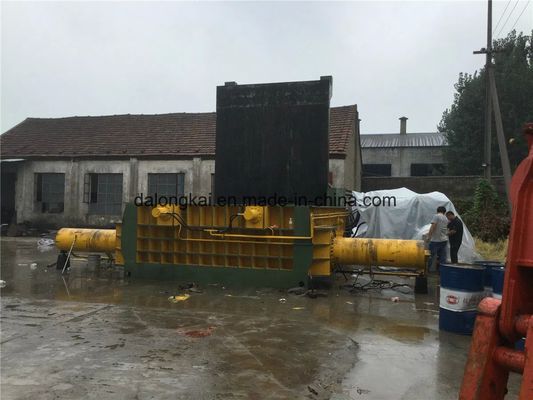

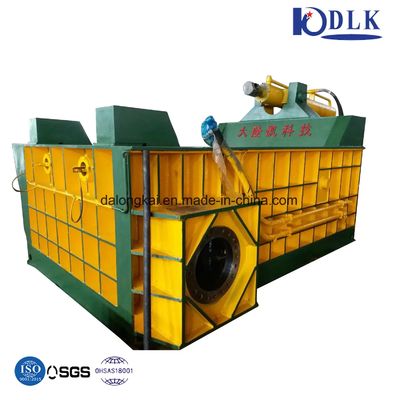

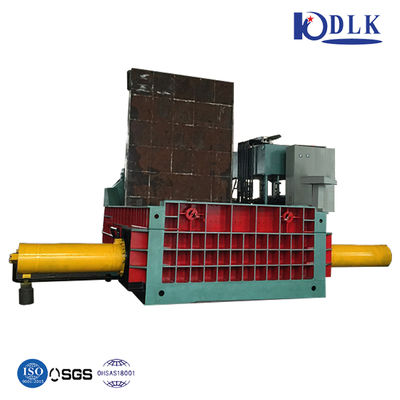

Y81K-400 400 Ton Hydraulic Scrap Metal Baler with 700x700mm Bale Size and 4000x3500x1300mm Press Box
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | Y81K-400 | 주요 Cyl.Force | 400 톤 |
|---|---|---|---|
| 박스 크기를 누릅니다 | 4000*3500*1300 (mm) | 베일 크기 | 700*700 (mm) |
| 베일 무게 | 800 ~ 1200 (kg) | 모터 파워 | 135 (KW) |
| 공칭 힘 | 125tons ~ 1200tons | 구동 유형 | 유압 |
| 전압 | 21.5MPA | 자동 등급 | 반자동 |
| 생산 능력 | 5 세트/월 | 압출력 | 63 톤에서 400 톤 |
| 생산력 | 4TONS/40TONS/SHIFT로 이동 | 전원 공급 장치 | 디젤 엔진 옵션 |
| 배출 유형 | 뒤집기, 밀고, 전달, 수동 리프팅 | ||
| 강조하다 | 700x700mm Bale Size Scrap Metal Baler,4000x3500x1300mm Press Box Hydraulic Baler Machine,135Kw Motor Metal Compress Machine |
||
제품 설명
Y81K-400 Scrap Metal Compress Hydraulic Machine
Product Overview
The Y81 series metal hydraulic baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales (square column, cylinder, octagon shapes) to reduce transportation costs and improve logistics efficiency.
Key Features
- Processes multiple metal types: steel, copper, aluminum, stainless steel, automotive scrap
- Creates uniform bales for optimized transportation and storage
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, manual lifting
- No foundation bolts required for installation
- Diesel engine compatible for areas with unreliable power supply
- Customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Model Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
Commercial Terms
| Term | Detail |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Factory & Certification
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance.
Spare parts are provided free if problems are caused by manufacturing defects.
For user-caused issues, spare parts are available at cost. Direct technical support is always available.
Q2: Can I visit your factory before ordering?
Welcome to visit our factory at: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China.
We're near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with 20 years of experience, exporting 50-60% of our production.
Q4: How can I trust your company?
- Third-party assessed with national patents and CE, ISO certifications
- Factory inspections welcome - conveniently located near Shanghai Pudong airport
- 20 years specialization in hydraulic balers and shears
Q5: Is your price competitive?
We offer the best factory price for our superior quality machines and comprehensive service.
