매뉴베일러 기계는 매우 잘 일합니다. -
안킷당신의 베일러는 매우 좋고, 잘 작동합니다.지스러기 금속 화물은 큽니다.
Y81F-200 Hydraulic Metal Baler with 200 Ton Force 1600x1200x800mm Press Box and 400x400mm Bale Size
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델 번호 | Y81F-200 | 유형 | 지스러기 금속 베일러 |
|---|---|---|---|
| 오토메이션 | 반자동 | 주요 Cyl.Force | 200톤 |
| 박스 크기를 누릅니다 | 1600*1200*800 (mm) | 베일 크기 | 400*400 (mm) |
| 베일 무게 | 120 ~ 170 (kg) | 모터 | 44 (KW) |
| 전원 유형 | 유압 | 공칭 힘 | 125tons ~ 1200tons |
| 힘 | 15kW ~ 270kW | 전압 | 21.5Mpa, 맞춤형 |
| 자동 등급 | 반자동 | 생산 능력 | 5 세트/월 |
| 구동 유형 | 유압 | ||
| 강조하다 | 200 Ton Hydraulic Metal Baler,1600x1200x800mm Scrap Baler Machine,400x400mm Metal Baling Press |
||
제품 설명
Y81f-200 Hydraulic Metal Steel Shavings Baling Press Machine
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This process reduces transportation costs and increases logistics efficiency by producing uniform shapes like square columns, cylinders, and octagonal blocks.
Key Features
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas with unreliable power supply
- Extrusion force from 63 to 400 tons across 10 models
- Productivity ranging from 4 to 40 tons per shift
- Fully customizable compression chamber and bale dimensions
Applications
Ideal for steel plants, recycling facilities, metal processing industries, and non-ferrous metal refining operations.
Product Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Technical Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set /month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |

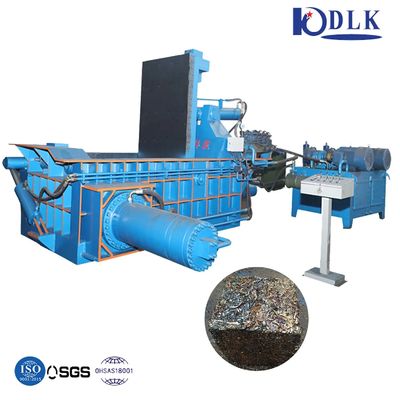

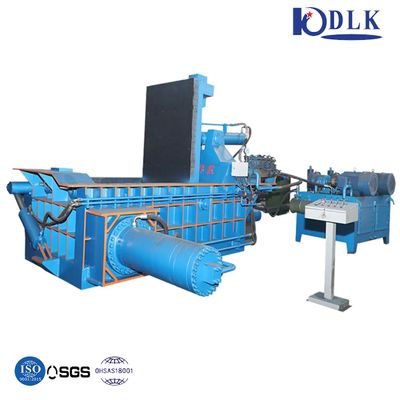

Product Images
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by us. For man-made issues, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Welcome to visit our factory at: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We're near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We're a manufacturer with our own factory operating for 20 years, exporting 50-60% of our production.
Q4: How can I trust your company?
- Third-party assessed with national patents, CE, and ISO certifications
- Factory inspections welcome - conveniently located near Shanghai Pudong airport
- 20 years specialization in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
We guarantee the best factory price based on superior product quality and comprehensive service.
