WS-1000 Horizontal Container Shear with 15-25t/H Production Rate 360kw Power for Scrap Recycling
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 최대 절단력 | 1000ton | 블레이드 길이 | 1600/2100mm |
|---|---|---|---|
| 생산 속도 | 15-25t/h | 힘 | 360kW |
| 전단 실린더 모델 | YG500/380 | 전단 실린더 수량 | 2 |
| 전단 실린더 추력 | 5000Knx2 | 푸시 실린더 모델 | YG340/220 |
| 푸시 실린더 수량 | 1 | 푸시 실린더 추력 | 2500kn |
| 유압 | <22Mpa | 절단 높이 | 420mm |
| 전단 시간 | 2-3 분/분 | 오일 탱크 크기 | 10000X2000X750 |
| 모터 파워 | 90kW | ||
| 강조하다 | 15-25t/H Production Rate Container Shear,360kw Power Gantry Shear,Horizontal Structure Scrap Shear |
||
제품 설명

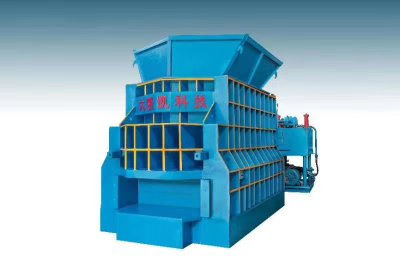

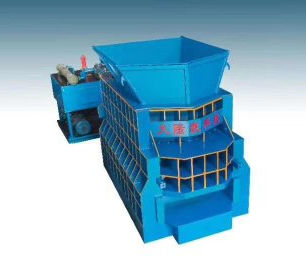

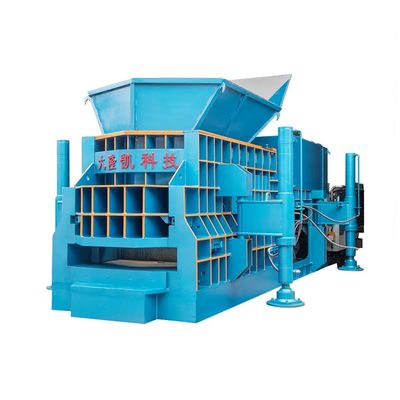

WS-1000 Container Shear
Jiangsu Dalongkai Technology Co., Ltd. specializes in manufacturing scrap metal recycling processing and hydraulic equipment. With advanced technology, modern manufacturing lines, and comprehensive testing devices, we produce various hydraulic scrap balers and shears including container shears, metal balers, garbage compactors, briquetting presses, and sheet metal shears. Our products are exported worldwide to Russia, India, South Africa, and Southeast Asia.
Our machines are designed for scrapyards, steel mills, scrap recycling processing, and nonferrous & ferrous smelting industries.
Finished Products
Package
Product Specifications
Applications
The WS-1000 Container Shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Various models are available to suit different requirements.
Key Features
- Horizontal structure allows for manual or automatic feeding with conveyor
- PLC control with push-button operation for safety and reliability
- High output capacity for efficient processing
| No. | Parameter Name And Content | Remark |
|---|---|---|
| 1 | Shearing Hydro-Cylinder Model: YG500/380 Quantity: 2 Nominal Thrust: 5000Knx2 |
|
| 2 | Push Hydro-Cylinder Model: YG340/220 Quantity: 1 Nominal Thrust: 2500Kn |
|
| 3 | Hydraulic System Working Pressure | <22Mpa |
| 4 | Cutting Length/Height | 1600/420mm |
| 5 | Shearing Times | 2-3Times/Min (Empty load Load operation) |
| 6 | Operating Mode | Mechanical Loading Materials, Push-Button & PLC Control (With The Remote Control) |
| 7 | Power Specification | 415V/3P 50Hz (According to your requirement) |
| 8 | Main Machine Power | 360Kw (not including system of cooling, heating and filtering) |
| 9 | Oil Tank Size | 10000X2000X750 |
| 10 | Motor Model: Y2-280M-4 Quantity: 4 Rated Speed: 1470 Rpm Rated Power: 90 Kw |
|
| 11 | Pump Model: A4V250*2 Quantity: 4 (connected pump) Nominal Displacement: 250ml/r Rated Pressure: 31.5Mpa |
Other Models For Container Shear
| Model | Max Cutting Force(KN) | Blade Length(mm) | Shear Height(mm) | Production Rate(t/h) | Power(KW) |
|---|---|---|---|---|---|
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 110 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 220 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 360 |
