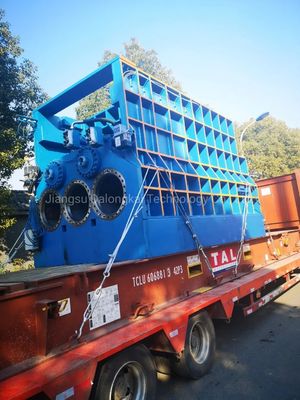

WS-630 Model Gantry Shear with 6300kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Cutting
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델번호 | WS-630 | 최대 절단력 | 6300kN |
|---|---|---|---|
| 블레이드 길이 | 1400mm | 생산 속도 | 8-12T/H |
| 힘 | 110kW | 전단형 하이드로 실린더 모델 | YG400/280 |
| 전단 하이드로 실린더 수량 | 2 | 전단 하이드로 실린더 추력 | 3150KNX2 |
| 푸시 하이드로 실린더 모델 | YG280/200 | 푸시 하이드로 실린더 추력 | 1350KN |
| 유압 시스템 압력 | <22Mpa | 절단 높이 | 420mm |
| 전단 시간 | 2~4회/분 | 작동 모드 | 기계적 로딩 재료, 푸시 버튼 및 Plc 제어 |
| 오일 탱크 크기 | 3000X2000X800(4500L) | ||
| 강조하다 | WS-630 Model Gantry Shear,6300kn Max Cutting Force Hydraulic Metal Shear,1400mm Blade Length Scrap Metal Cutting Machine |
||
제품 설명
WS-630 Hydraulic Automatic Steel Cutting Machine
About Our Company
Jiangsu Dalongkai Technology Co., Ltd. specializes in manufacturing scrap metal recycling processing and hydraulic equipment. With strong technology, advanced manufacturing lines, and comprehensive testing devices, we produce various hydraulic scrap balers, scrap shears, container shears, hydraulic metal balers, garbage compactors, briquetting presses, sheet metal shears, and other non-standard equipment. Our products are exported to Russia, India, South Africa, Southeast Asia, and other regions.
Our machines are primarily designed for scrapyards, steel mills, scrap recycling processing industries, and nonferrous & ferrous smelting industries.

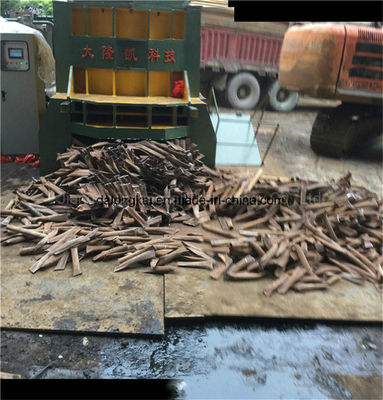

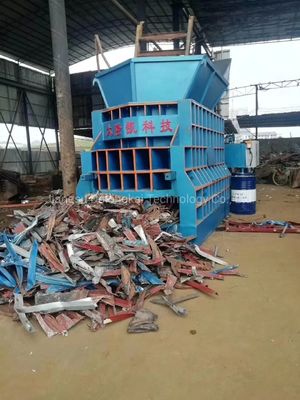

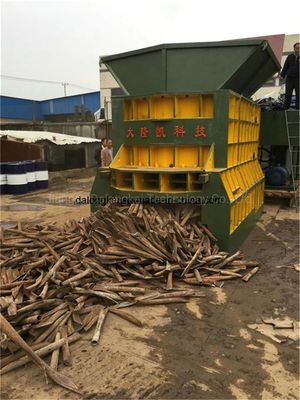

Finished Products
Package

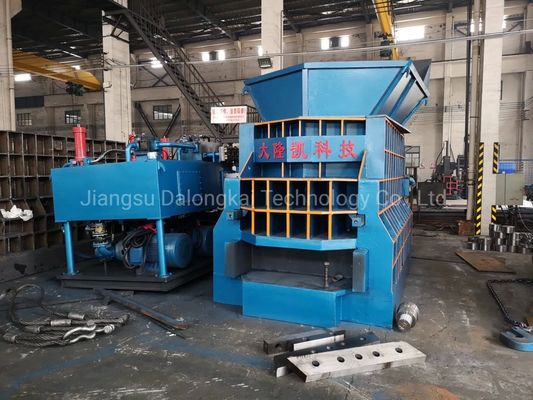

WS-630 Horizontal Metal Container Shear
Applications
The scrap shear is designed for economical scrap processing. This machine features easy operation and flexible transportation with a roll on/roll off system. Various models are available. HPM series of horizontal balers work with manual belting.
Key Features
- Horizontal structure: feeding can be manual or automatic with conveyor
- PLC control and push-button operation for safe and reliable performance
- High output capacity
WS-630 Container Shear Technical Parameters
| No. | Parameter Name And Content | Remark |
|---|---|---|
| 1 | Shearing Hydro-Cylinder Model: YG400/280 Quantity: 2 Nominal Thrust: 3150KNX2 |
|
| 2 | Push Hydro-Cylinder Model: YG280/200 Quantity: 1 Nominal Thrust: 1350KN |
|
| 3 | Hydraulic System Working Pressure | <22Mpa |
| 4 | Cutting Length/Height | 1400/420mm |
| 5 | Shearing Times | 2-4 Times/Min (Empty load Load operation) |
| 6 | Operating Mode | Mechanical Loading Materials, Push-Button & Plc Control (With The Remote Control) |
| 7 | Power Specification | 415V/3P 50Hz |
| 8 | Main Machine Power | 110Kw (not including system of cooling, heating and filtering) |
| 9 | Oil Tank Size | 3000X2000X800 (4500L) |
| 10 | Cooling Mode | Forced air cooling 52P 52P |

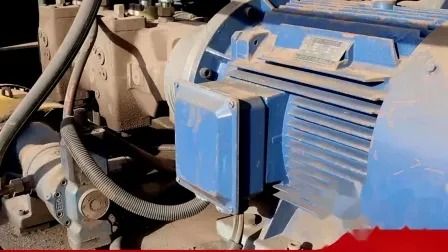

| 10 | Motor Model: Y2-250M-4 Quantity: 2 Rated Speed: 1470 Rpm Rated Power: 55 Kw |
|
| 11 | Pump Model: A4V250 Quantity: 2 Nominal Displacement: 250ml/r Rated Pressure: 31.5Mpa |
| Model | Max Cutting Force(KN) | Blade Length(mm) | Shear Height(mm) | Production Rate(t/h) | Power(KW) |
|---|---|---|---|---|---|
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 110 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 220 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 360 |
