WS-630 Hydraulic Gantry Shear with 8-12t/H Production Rate 135kw Power and Horizontal Structure
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 최대 절단력 | 6300kN | 블레이드 길이 | 1400mm |
|---|---|---|---|
| 생산 속도 | 8-12T/H | 힘 | 135 kw |
| 공칭 힘 | 400 톤 | 피구동형 | 유압 |
| 최대 전단 길이 | 1600MM | 전압 | 21.5MPA |
| 자동등급 | 오토매틱 | 절삭홈 높이 | 300/420mm |
| 모델번호 | WS-630 | 생산능력 | 5 세트/월 |
| 블레이드 길이 | 1400/1600mm | ||
| 강조하다 | 8-12t/H Production Rate Gantry Shear,135kw Power Hydraulic Metal Shear,Horizontal Structure Automatic Shear Machine |
||
제품 설명

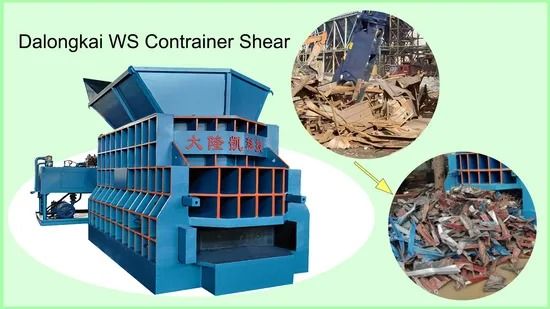

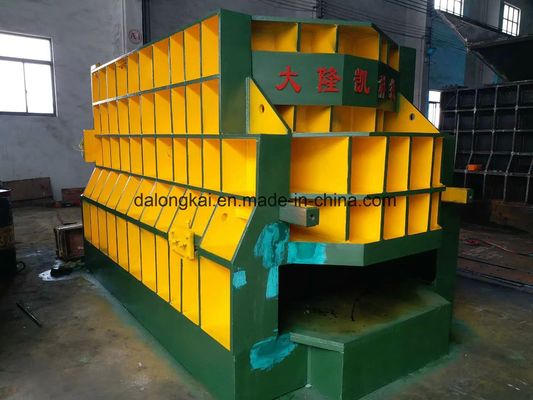

WS-630 Hydraulic Metal Structure Automatic Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap metal processing, featuring easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different requirements.
Applications
Ideal for scrap metal processing. The HPM series of horizontal balers work with manual belting for efficient operation.
Key Features
- Horizontal structure allows for manual or automatic feeding with conveyor
- PLC control and push-button operation ensure safety and reliability
- High output for efficient processing
Specifications
| Product Name | WS Horizontal Metal Shear |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 400Ton |
| Driven Type | Hydraulic |
| Max. Length To Shear | 1600mm |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 5 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Technical Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
