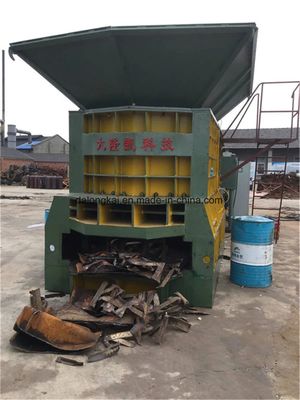

WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing

  • WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing
  • WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing
  • WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing
  • WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing
인증 ISO
최소 주문 수량 1
가격 75000

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

x
제품 상세 정보
최대 절단력 5000kN 블레이드 길이 1400mm
생산 속도 6-8t/h 힘 90kW
공칭 힘 400 톤 피구동형 유압
최대 전단 길이 1600MM 전압 21.5MPA
자동등급 오토매틱 절삭홈 높이 300/420mm
모델번호 WS-500 생산능력 5 세트/월
제어 시스템 PLC 구조 유형 수평의
작동 유형 누름 버튼
강조하다

Hydraulic Driven Gantry Shear

,

6-8t/H Production Rate Gantry Shear

,

90kw Power Hydraulic Scrap Metal Shear
메시지를 남겨주세요
제품 설명

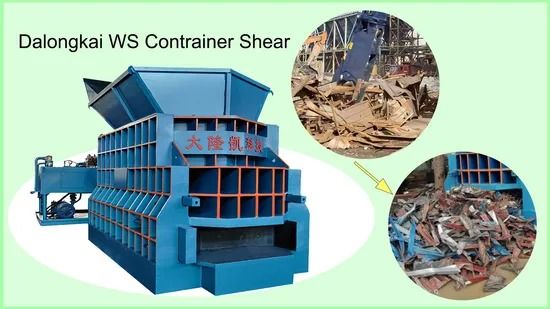

WS-500 Hydraulic Scrap Metal Automatic Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap metal processing, featuring easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different operational requirements.
Key Features
  • Horizontal structure: Supports both manual feeding and automatic feeding with conveyor
  • PLC control system: Push-button operation ensures safe and reliable performance
  • High output capacity: Designed for efficient scrap processing
Product Specifications
Product Name WS Horizontal Metal Shear
Condition New
Application Scrap metal processing
Nominal Force 400Ton
Driven Type Hydraulic
Max. Length To Shear 1600mm
Voltage 21.5Mpa, Customized
Color Customized
Automatic Grade Automatic
Commercial Terms
Minimum Order Quantity 1 Set
Price Negotiable
Payment Terms 30% T/T In Advance
Supply Ability 5 sets/month
Delivery Time As per requirement
Packaging Details Seaworthy packing
After-sales Service Engineers available for overseas service
Technical Specifications
Model Max Cutting Force (KN) Blade Length (mm) Shear Height (mm) Production Rate (t/h) Power (KW)
WS-400 4000 1000 300/420 4-7 74
WS-500 5000 1400/1600 300/420 6-9 90
WS-630 6300 1400/1600 300/420 8-15 135
WS-800 8000 1600 420/500 12-18 180
WS-1000 10000 1600/2100 420/500 15-25 225
