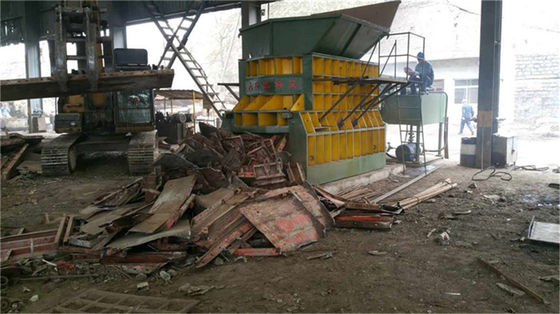

WS-500 Model Gantry Shear with 5000kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 모델번호 | WS-500 | 최대 절단력 | 5000kN |
|---|---|---|---|
| 블레이드 길이 | 1400mm | 생산 속도 | 6-8t/h |
| 힘 | 90kW | 공칭 힘 | 400 톤 |
| 피구동형 | 유압 | 최대 길이 | 1600MM |
| 전압 | 21.5MPA | 자동등급 | 오토매틱 |
| 절삭홈 높이 | 300/420mm | 생산능력 | 5 세트/월 |
| 색상 | 맞춤형 | 제어 유형 | PLC |
| 작동 유형 | 누름 버튼 | ||
| 강조하다 | WS-500 Model Gantry Shear,5000kn Max Cutting Force Scrap Metal Shear,1400mm Blade Length Horizontal Metal Shear |
||
제품 설명
WS-500 Horizontal Scrap Non-Ferrous Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via a roll on/roll off system. Various models are available to meet different production requirements.
Applications
Ideal for processing scrap metal, the HPM series of horizontal balers work with manual belting for efficient material handling.
Key Features
- Horizontal structure allows for manual or automatic feeding with conveyor
- PLC control and push-button operation ensure safe and reliable performance
- High output capacity for efficient production
Specifications
Product Name:
WS Horizontal Metal Shear
Condition:
New
Application:
Scrap metal
Nominal Force:
400Ton
Driven Type:
Hydraulic
Max. Length To Shear:
1600mm
Voltage:
21.5Mpa, Customized
Color:
Customized
Automatic Grade:
Automatic
Technical Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
Commercial Terms
Minimum Order Quantity:
1 Set
Price:
Negotiable
Payment Terms:
30% T/T In Advance
Supply Ability:
5 sets /month
Delivery Time:
As your requirement
Packaging Details:
Seaworthy packing
After-sales Service:
Engineers are available to overseas service
