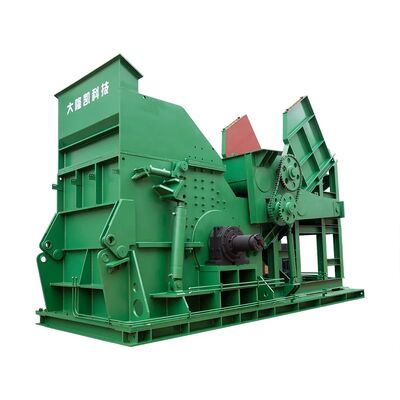

PSX-6868 Hydraulic Drive Scrap Steel Shredder with Hard Alloy Cutter for Fine Grinding Metal Recycling
제품 상세 정보
| 모델 번호. | PSX-6868 | 모터 | 10-15(티/시) |
|---|---|---|---|
| 유형 | 해머 크러셔 | 운전하다 | 유압 |
| 파쇄 정도 | 미세 연삭기 | 분쇄 스타일 | 연삭 및 충격 |
| 원칙 | 롤러 컬링 | 커터 재질 | 경질 합금 |
| 압축강도 | >300MPA | 공칭 힘 | 400톤 ~5500톤 |
| 힘 | 400KW~5500kW | 전압 | 21.5MPA |
| 자동등급 | 오토매틱 | 피드 입구 폭 | 1750 밀리미터 |
| 주요 힘 | 600kW | ||
| 강조하다 | Hydraulic Drive Scrap Steel Shredder,Hard Alloy Cutter Hammer Crusher,Fine Grinding Metal Shredder |
||
제품 설명

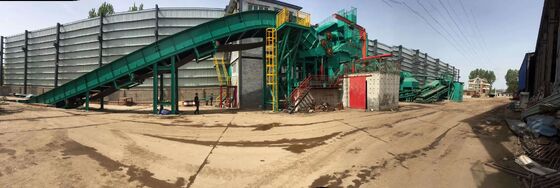

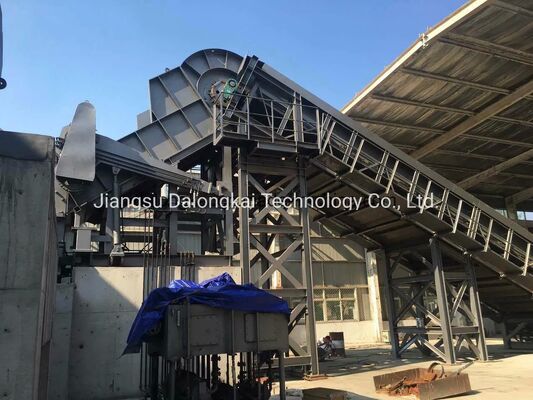

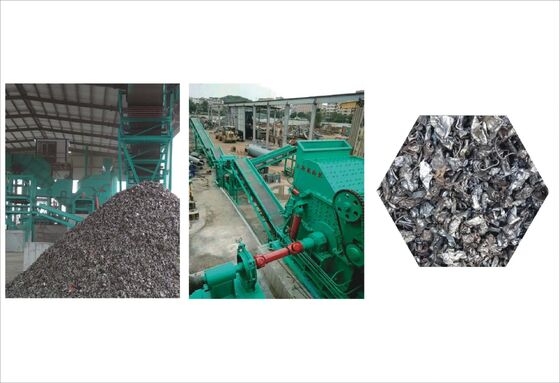

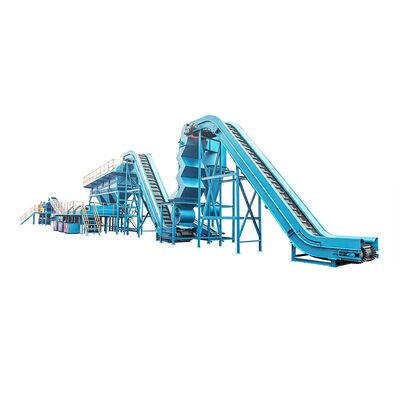

PSX-6868 Scrap Steel Shredder Line
Applications & Benefits
The PSX Scrap Steel Shredder Line is engineered to process various light and thin materials including discarded automobiles, tin plate, household appliances, bicycles, and empty cans. This advanced system transforms scrap materials into pure furnace charge for steel production.
Through comprehensive shredding and compression processes, the system effectively removes impurities and increases material density. This results in significantly reduced transportation and smelting costs while providing steel plants with high-quality furnace charge.
Compatible Materials
- Complete or flattened automobile bodies (excluding tires, gasoline cylinders, tanks, engines, and gear boxes)
- Various tinplate categories
- Household electrical appliances (excluding motors, compressors, and axles)
- Bicycle frames and similar structural materials
- Empty tanks and containers (excluding liquids, oil paint, etc.)
- Other materials suitable for industrial shredding processes
Product Specifications
| Product Name | PSX Scrap Steel Shredder Line |
|---|---|
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 400 Tons - 5500 Tons |
| Driven Type | Hydraulic |
| Power | 400KW - 5500kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Technical Specifications
| Model | Feed Inlet Width (mm) | Main Power (KW) | Capacity (t/h) |
|---|---|---|---|
| PSX-5070 | 1750 | 450 | 8-12 |
| PSX-6868 | 1750 | 600 | 10-15 |
| PSX-6886 | 2200 | 900 | 20-25 |
| PSX-68104 | 2200 | 1500 | 30-40 |
| PSX-80104 | 2600 | 2240 | 40-60 |
| PSX-88104 | 2600 | 3000 | 60-100 |
| PSX-98104 | 2600 | 4500 | 100-200 |
| PSX-98114 | 2900 | 5500 | 150-300 |
Commercial Terms
| Minimum Order Quantity | 1 Set |
|---|---|
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 6 sets /year |
| Delivery Time | As per customer requirements |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
