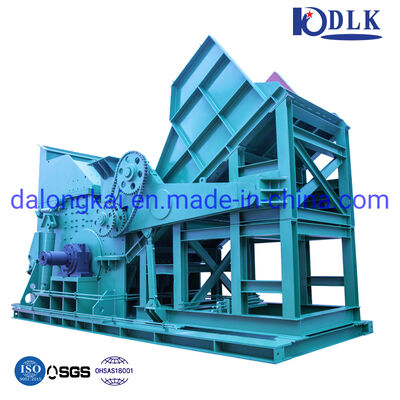

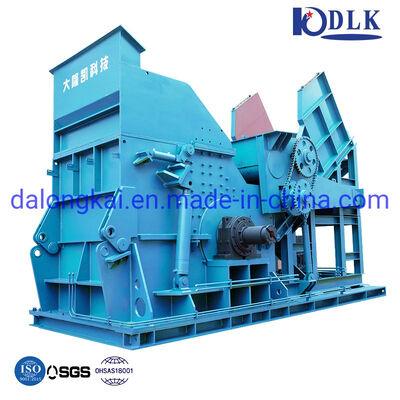

PSX-450KW Hydraulic Shredder with Hard Alloy Cutter for Scrap Metal 15-20T/H Capacity Hammer Crusher
제품 상세 정보
| 모델 번호. | PSX-450KW | 커터 재질 | 경질 합금 |
|---|---|---|---|
| 드라이브 유형 | 유압 | 피드 개구부 폭 | 1200(mm) |
| 메인 모터 전원 | 450kW | 용량 | 15-20(티/시) |
| 자동등급 | 오토매틱 | 원칙 | 롤러 컬링 |
| 완성된 표면 | 외부 표면 공정 | 압축강도 | >300MPA |
| 집게의 특징 | 조절 가능한 집게 | 공칭 힘 | 400톤 ~4500톤 |
| 전압 | 380V 50Hz, 맞춤형 | 생산능력 | 15세트/년 |
| 전력 범위 | 450KW~4500kW | ||
| 강조하다 | 450KW Hydraulic Shredder,Hard Alloy Cutter Scrap Metal Shredder,15-20T/H Capacity Hammer Crusher |
||
제품 설명

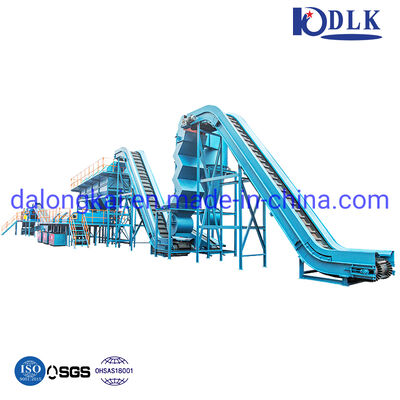

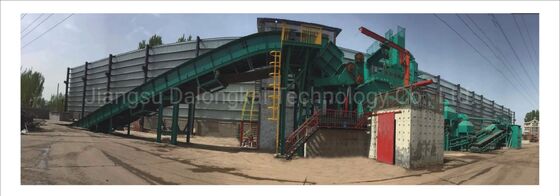

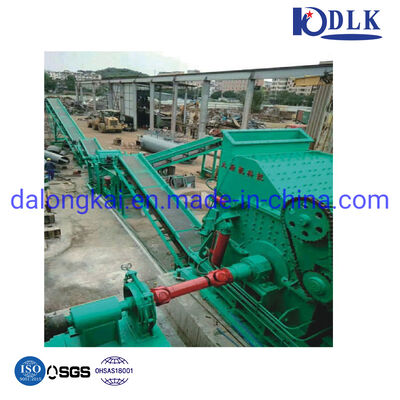

PSX-450KW Empty Cans Hydraulic Shredder Line
The PSX-450KW Empty Cans Hydraulic Shredder Line is designed for efficient processing of various light and thin scrap materials, transforming them into pure charge for steel making operations.
Applications
This scrap steel shredder processes a wide range of materials including:
- Discarded automobiles and vehicle bodies
- Tin plate and metal sheets
- Household appliances
- Bicycles and similar structures
- Empty cans and containers
Through advanced smashing and compressing technology, the shredder effectively removes impurities and increases material densities, significantly reducing transportation and smelting costs while providing high-quality furnace charge for steel plants.
Material Processing Capabilities
- Complete or flattened car bodies (excluding tires, gasoline, cylinders, tanks, engines, and gearboxes)
- Various tinplate categories
- Home electrical appliances (excluding motors, compressors, and axles)
- Bicycle bodies and similar structural materials
- Empty tanks and containers (excluding liquids, oil paint, etc.)
- Other materials suitable for shredding operations
Product Specifications
| Product Name | PSX Scrap Steel Shredder Line |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 400Tons ~ 4500Tons |
| Driven Type | Hydraulic |
| Power | 450KW ~ 4500kW |
| Voltage | 380V 50Hz, Customized available |
| Color | Customized |
| Automatic Grade | Automatic |
Technical Specifications
| Model | Feed Opening Width (mm) | Power (KW/HP) | Capacity (t/h) |
|---|---|---|---|
| PSX-400/450 | 1200 | 400KW/450KW/535HP | 6-10 |
| PSX-750 | 2200 | 750(1000) | 15-20 |
| PSX-900 | 2200 | 900(1200) | 20-30 |
| PSX-1200 | 2500 | 1200(1600) | 25-40 |
| PSX-1500 | 2500 | 1500(2000) | 40-50 |
| PSX-2000 | 2500 | 2000 | 50-60 |
| PSX-2250 | 2500 | 2250(3000) | 60-80 |
| PSX-3000 | 2500 | 3000(4000) | 80-100 |
| PSX-4500 | 2500 | 4500(6000) | 100-160 |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 6 sets /year |
| Delivery Time | As per customer requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Manufacturer Profile
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted manufacturer in the waste recycling equipment industry for over a decade. As a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products include shear balers, scrap balers, scrap shears, and recycling cranes.
In addition to scrap metal processing equipment, we also supply horizontal and vertical balers for compacting plastic, paper, cardboard, straw, textile, and various other waste materials.
Our Dalongkai brand has received critical acclaim both domestically and internationally. As a trusted waste recycling equipment manufacturer, we have successfully passed TUV certification and ISO9001 Quality Management System certification. We are currently in the process of obtaining European standard approvals including CE and UL.
Certifications
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by manufacturing defects. For issues caused by improper operation, we also provide spare parts at cost. Any problems can be addressed by contacting us directly.
Q2: Can I visit your factory before placing an order?
Yes, we welcome visits to our factory. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. Our factory is conveniently located near Shanghai Pudong Airport. We provide airport pickup and hotel booking services for visiting clients.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with export proportion of 50-60% of our production.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. Our credentials include: national patents, CE and ISO certifications for all equipment; open factory inspections (conveniently located near Shanghai Pudong airport); and proven expertise in hydraulic balers and hydraulic shears.
