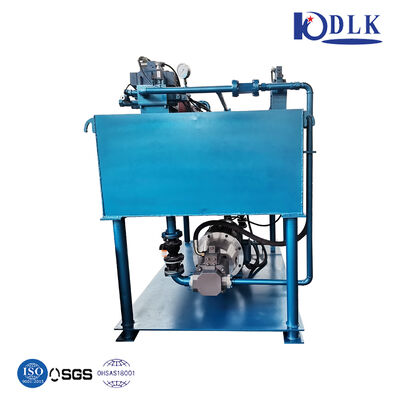

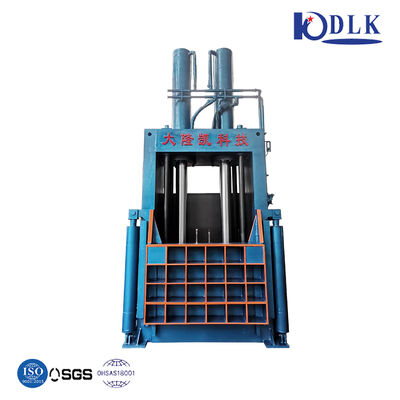

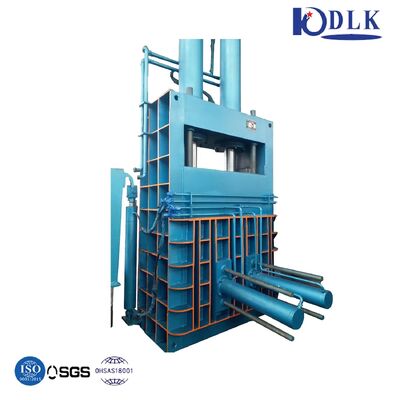

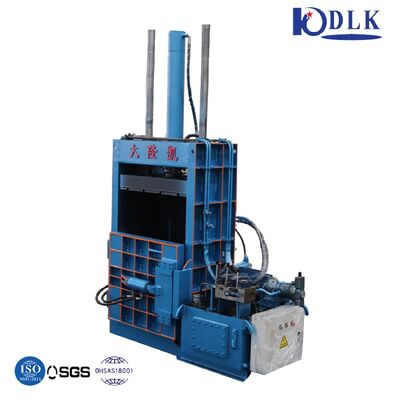

200 Ton Hydraulic Vertical Baler Machine with 1500*1000*1600mm Press Box and 37Kw Power for Recycling
제품 상세 정보
| 모델 번호. | Y82-200 | 가공된 재료 | 플라스틱 병 |
|---|---|---|---|
| 플라스틱 종류 | 애완 동물 | 주요 Cyl.Force | 200톤 |
| 프레스 박스 크기 | 1500*1000*1600(mm) | 베일 섹션 | 1500*1000(mm) |
| 힘 | 37 (KW) | 베일 배출 방법 | 가방 밀기 |
| 생산능력 | 10 세트/월 | 공칭 힘 | 2000kN/200t |
| 챔버 크기 | 1500*1000*1600mm | 베일 섹션 | 1500*1000mm |
| 힘 | 37KW | 베일 배출 방법 | 투표율 |
| 오토메이션 | 비 자동화 | ||
| 강조하다 | 200 Ton Hydraulic Vertical Baler,1500*1000*1600mm Paper Baler Machine,37Kw Vertical Baler |
||
제품 설명
200ton Hydraulic Vertical Baler Machine
Applications
- Compressing and baling woven bags/cloth, waste paper, and scrap paper for efficient transportation and storage
- Compressing and baling wool/wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification options
- Hydraulic pressure drive with overhead type oil cylinder, operates without underground foundation
- All oil cylinders use imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
General Information
| Model Number | Y82-250~Y82-1600 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Baler Specifications for Paper/Plastic
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |
Company Overview
Workshop
Our team
Certification
FAQ
Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by us. For man-made problems, we also provide spare parts at cost. Any issues can be addressed by calling us directly.
Can I visit your factory before placing an order?
Yes, we welcome visits to our factory. Our address is: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We are located near Shanghai Pudong Airport and can provide airport pickup and hotel booking services.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for over 20 years, with export proportion of 50-60%.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents and CE, ISO certifications for all equipment. Our factory is conveniently located near Shanghai Pudong airport for inspections. We specialize in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and service.
