Y82-25 Hydraulic Vertical Paper Baling Machine with 250 Ton Force and Customizable Bale Size for Efficient Recycling
제품 상세 정보
| 모델 번호 | Y82-25 | 자동화 수준 | 비 자동화 |
|---|---|---|---|
| 전산화 | 비컴퓨터화됩니다 | 주요 실린더 힘 | 250 톤 |
| 프레스 박스 크기 | 1080*780*1500(mm) | 베일 섹션 | 1080*780(mm) |
| 힘 | 15(KW) | 베일 배출 방법 | 가방 밀기 |
| 생산능력 | 5 세트/월 | 공칭 힘 | 250KN/25t |
| 챔버 크기 | 1080*580*1500mm | 오일 실린더 유형 | 간접비 유형 |
| 밀봉 링 | 수입 | 맞춤형 크기 | 예 |
| BALING 압력 범위 | 15톤에서 400톤 | ||
| 강조하다 | 250 Ton Force Paper Baler Machine,Hydraulic Pressure Drive Vertical Baler,Customizable Bale Size Hydraulic Vertical Paper Baling Machine |
||
제품 설명

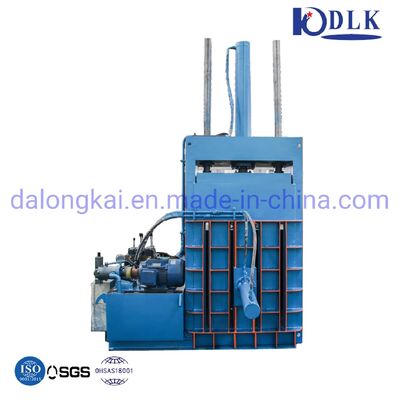

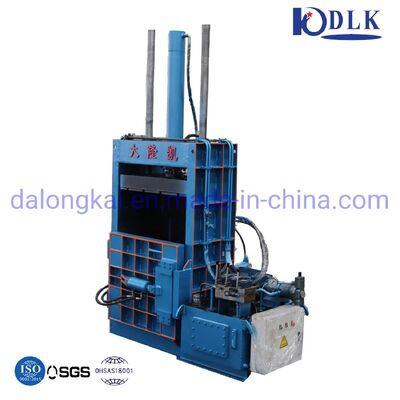

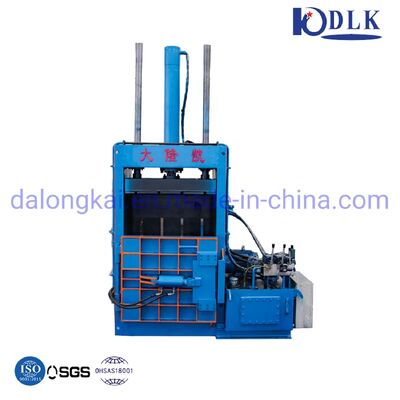

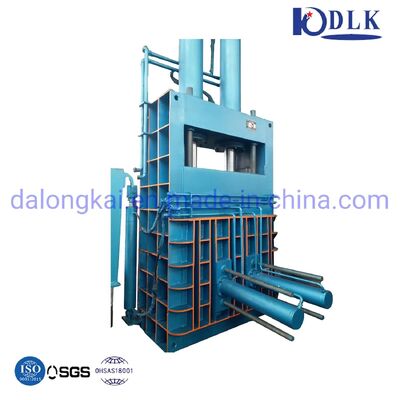

Y82-25 Hydraulic Vertical Paper Baling Machine
Applications
- Compressing and baling woven bags, cloth, waste paper, and scrap paper for efficient transportation and storage
- Compressing and baling wool and wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification options
- Hydraulic pressure drive with overhead type oil cylinder, operates without underground foundation
- All oil cylinders use imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
Model Number: Y82-250~Y82-1600
Certification: SGS
Place of Origin: Jiangsu P.R. China
Certification: SGS
Place of Origin: Jiangsu P.R. China
Commercial Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Payment Terms: 30% T/T In Advance
Supply Ability: 15 sets/month
Delivery Time: As per requirement
Packaging Details: Seaworthy packing
After-sales Service: Engineers available for overseas service
Price: Negotiable
Payment Terms: 30% T/T In Advance
Supply Ability: 15 sets/month
Delivery Time: As per requirement
Packaging Details: Seaworthy packing
After-sales Service: Engineers available for overseas service
Baler Specifications for Paper/Plastic
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |
