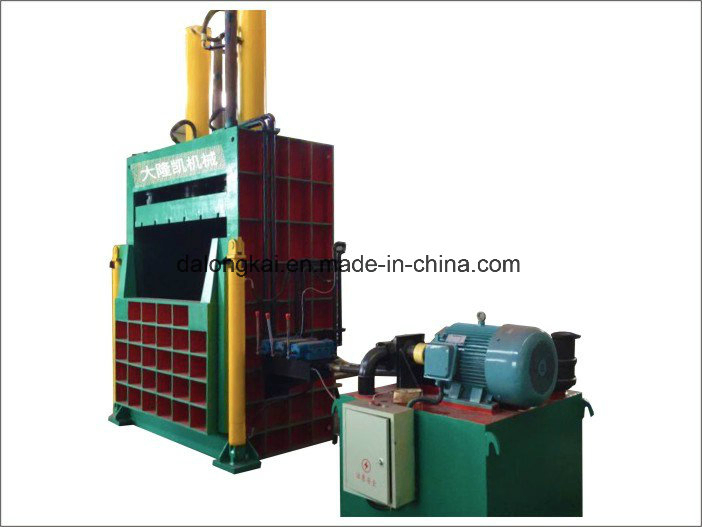

Y82-100 Hydraulic Vertical Baler Machine

인증 ISO, ISO9001
최소 주문 수량 1
가격 13000
제품 상세 정보
모델 번호. Y82-100 유형 고철 포장기, 이중 기둥 유압 프레스
오토메이션 반자동 특징 정도
맞춤형 맞춤형 상태 새로운
주요 Cyl.Force 100 톤 프레스 박스 크기 1100*700*1600(mm)
베일 섹션 1100*700(mm) 22(kw)
베일 배출 방법 가방 밀기 운송 패키지 컨테이너
사양 Y82-100 등록 상표 다롱카이
기원 중국 HS코드 8422400000
생산능력 5 세트/월
강조하다

Y82-100 hydraulic paper baler

,

vertical baler machine with warranty

,

hydraulic vertical baler for paper

메시지를 남겨주세요
제품 설명
Applications:
1.Mainly used for compressing and baling of the woven bags/cloth, waste paper, scrap paper
convenient for transportation and storage.

2.Mainly used for compressing and baling of the wool/wool ball.

Features:
 1.Baling press pressure ranges from 15tons to 400tons. It has a complete range of specifications.
 2.Hydraulic pressure drive, using the overhead type oil cylinder and it can work without underground foundation.
 3.All the oil cylinders adopt imported sealing rings. This makes it have reliable quality and prolong service life.
 4.Package block size and the size of the compression chamber can be customized according to customer's request.
Attributions Model Number:     Y82-250~Y82-1600
  Certification:         SGS
  Place of Origin:    Jiangsu P.R. China


Commercial terms Minimum  Order Quantity:   1 Set
  Price:                      Negotiable
  Payment Terms:            30% T/T In Advance
  Supply Ability:              15set /month
  Delivery Time:              as your requirement
  Packaging Details:          Seaworthy packing
  After-sales Service :         Engineers are available to overseas service
Specification

Baler for paper/plastic
No. Model Nominal Force Chamber Size Bale Section Power Bale discharging method
1 Y82-25T 250KN/25t 1080*580*1500 mm 1080*580mm 15KW Turn-out
2 Y82-63T 630KN/63t 1080*750*1500 mm 1080*750mm 15KW Turn-out
3 Y82-100T 1000KN/100t 1100*700*1600 mm 1100*700mm 22KW Turn-out
4 Y82-160T 1600KN/160t 1100*700*1600 mm 1100*700mm 22KW Turn-out
5 Y82-200 2000KN/200t 1500*1000*1600 mm 1500*1000mm 37KW Turn-out
6 Y82-250 2500KN/250t 1500*1000*1600 mm 1500*1000mm 44KW Turn-out or PLC
control
7 Y82-315 3150KN/315t 2200*1100*3000 mm 2200*1100 60KW
8 Y82-400 4000KN/400t 1500*1000*1600 mm 1500*1000 90KW
