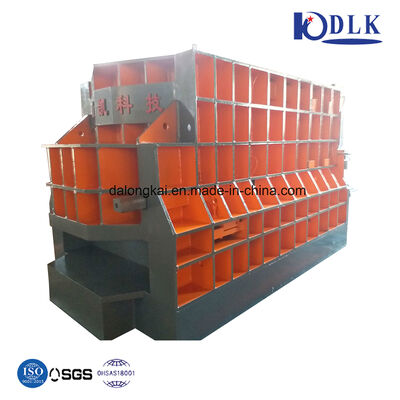

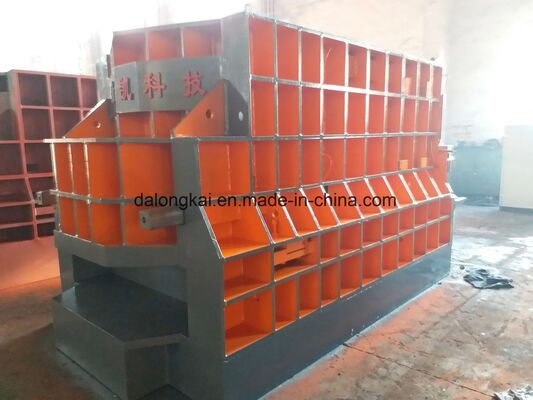

WS-630 Horizontal Automatic Gantry Shear with 6300kn Max Cutting Force, 1400mm Blade Length, and 8-12t/H Production Rate
제품 상세 정보
| 모델 번호. | WS-630 | 최대 절단력 | 6300kN |
|---|---|---|---|
| 블레이드 길이 | 1400mm | 생산 속도 | 8-12T/H |
| 힘 | 135 kw | 공칭 힘 | 400톤 |
| 피동형 | 유압 | 최대 길이 | 1600mm |
| 전압 | 21.5MPA | 자동등급 | 오토매틱 |
| 절삭홈 높이 | 300/420mm | 생산능력 | 5 세트/월 |
| 색상 | 맞춤형 | 상태 | 새로운 |
| 애플리케이션 | 금속 폐기물 | ||
| 강조하다 | 6300kn Max Cutting Force Gantry Shear,1400mm Blade Length Horizontal Metal Shear,8-12t/H Production Rate Scrap Metal Shear |
||
제품 설명
WS-630 Horizontal Automatic Steel Cutting Machine
WS Horizontal Metal Shear
Applications
Scrap shear is used for economical scrap processing. This machine features easy operation and flexible transportation with a roll on/roll off system. Various models are available to meet different production requirements.
Key Features
- Horizontal structure: feeding can be manual or automatic with conveyor
- PLC control and push-button operation for safe and reliable performance
- High output capacity for efficient scrap processing
Technical Specifications
| Product Name | WS Horizontal Metal Shear |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 400Ton |
| Driven Type | Hydraulic |
| Max. Length To Shear | 1600mm |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Technical Specifications Table
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 5 sets /month |
| Delivery Time | As your requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers are available to overseas service |
Product Images
Recommended Products
Manufacturer Information
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment. Our flagship products include the shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our Dalongkai brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Factory & Certifications
Frequently Asked Questions
Q1: How can I get the after-service?
We provide one year guarantee and lifelong maintenance. We will send you the spare parts by free if the problems caused by us. If it is the men-made problems, we also send the spare parts, however it is charged. Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
Sure, welcome to visit our factory. Our factory address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. Our factory is near Shanghai Pudong Airport. We can pick you up in the airport. Hotel booking service is available.
Q3: Are you a factory or trade company?
We are manufacturer with own factory for 20 years, export proportion 50~60%.
Q4: How can I trust your company?
With 20-years-professional design, we can provide you suitable suggestion and lowest price:
- Assessed by third party, national patents and CE, ISO for all equipment
- Welcome to inspect anytime. We are near to Shanghai Pudong airport
- For our machine, we do very well on hydraulic balers, hydraulic shears
Q5: Is your price competitive?
Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
