PSX-1500 Hydraulic Drive Scrap Shredder with Hard Alloy Cutter for Fine Grinding of Scrap Metal
제품 상세 정보
| 모델 번호. | PSX-1500 | 모터 | 40-50(티/시) |
|---|---|---|---|
| 유형 | 해머 크러셔 | 운전하다 | 유압 |
| 파쇄 정도 | 미세 연삭기 | 분쇄 스타일 | 연삭 및 충격 |
| 원칙 | 롤러 컬링 | 커터 재질 | 경질 합금 |
| 압축강도 | >300MPA | 공칭 힘 | 400톤 ~4500톤 |
| 힘 | 400KW~4500kW | 전압 | 21.5Mpa, 맞춤형 |
| 자동등급 | 오토매틱 | 피드 개구부 폭 | 2500mm |
| 용량 | 40-50(티/시) | ||
| 강조하다 | hydraulic drive scrap shredder,hard alloy cutter shredder,scrap metal fine grinding |
||
제품 설명
PSX-1500 Hydraulic Drive Scrap Shredder with Hard Alloy Cutter for Fine Grinding of Scrap Metal
Product Overview
The PSX Scrap Steel Shredder Line is engineered to process various light and thin materials into pure charge for steel making operations.
Applications
This industrial shredder efficiently processes:
- Discarded automobiles (excluding tires, gasoline cylinders, tanks, engines, and gear boxes)
- Tin plate categories
- Household appliances (excluding motors, compressors, and axles)
- Bicycle bodies and similar materials
- Empty tanks (excluding liquids, oil paint, etc.)
- Other suitable shreddable materials
Through smashing and compressing, the shredder removes impurities and increases material density, reducing transportation and smelting costs while providing high-quality furnace charge for steel plants.
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | PSX Scrap Steel Shredder Line |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 400Tons ~ 4500Tons |
| Driven Type | Hydraulic |
| Power | 400KW ~ 4500kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Performance Specifications
| Model | Feed Opening Width (mm) | Power (KW/HP) | Capacity (t/h) |
|---|---|---|---|
| PSX-400/450 | 1200 | 400KW/450KW/535HP | 6-10 |
| PSX-750 | 2200 | 750(1000) | 15-20 |
| PSX-900 | 2200 | 900(1200) | 20-30 |
| PSX-1200 | 2500 | 1200(1600) | 25-40 |
| PSX-1500 | 2500 | 1500(2000) | 40-50 |
| PSX-2000 | 2500 | 2000 | 50-60 |
| PSX-2250 | 2500 | 2250(3000) | 60-80 |
| PSX-3000 | 2500 | 3000(4000) | 80-100 |
| PSX-4500 | 2500 | 4500(6000) | 100-160 |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 6 sets /year |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |

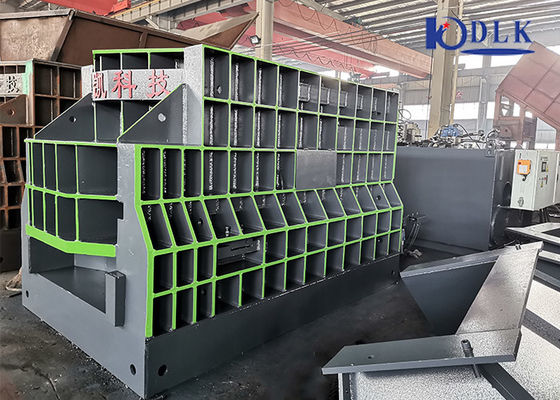

Product Images
Factory & Certifications
